MY-D023G

MY-D023G

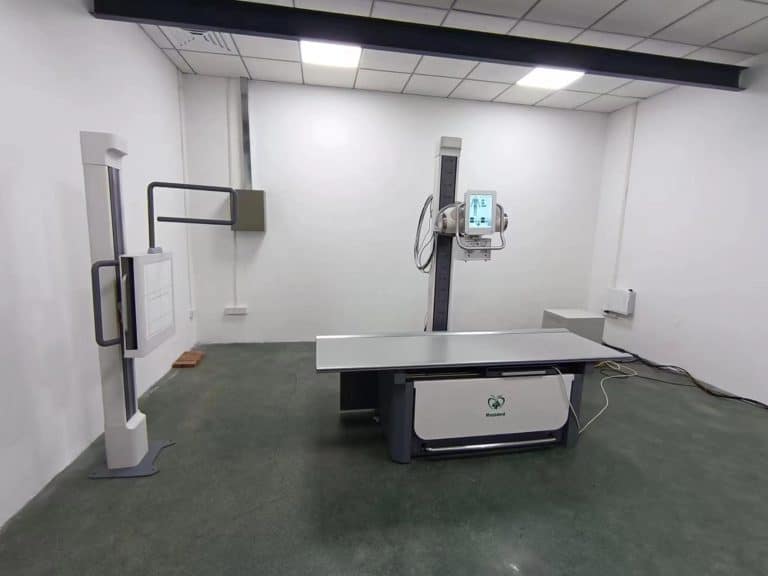

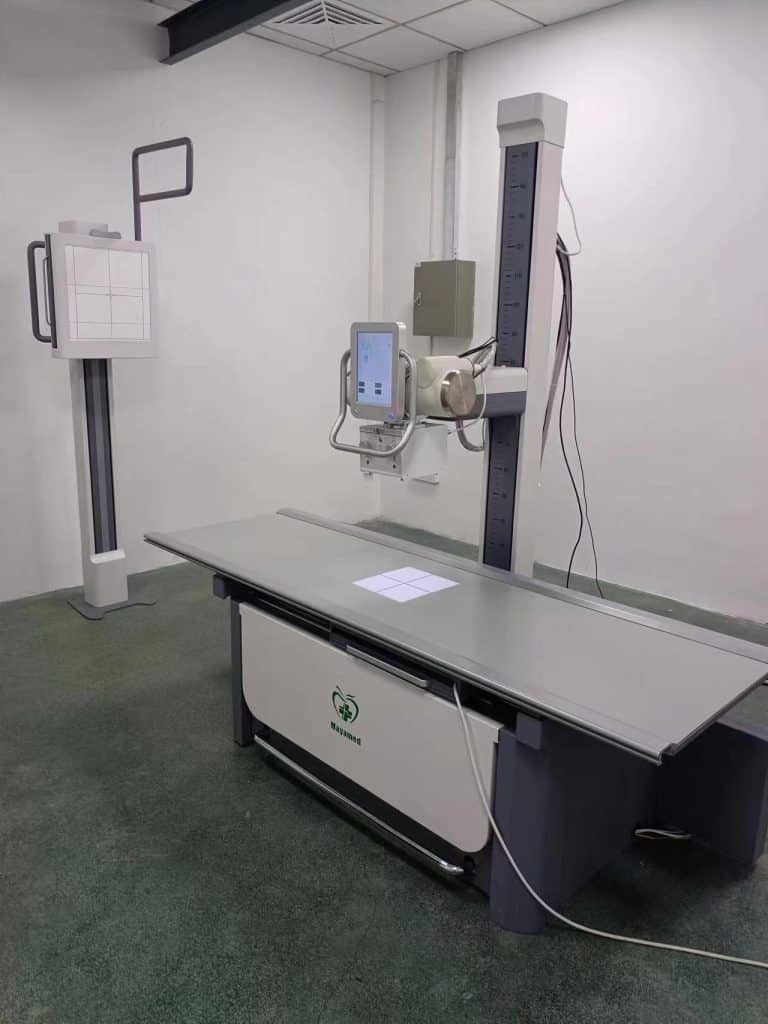

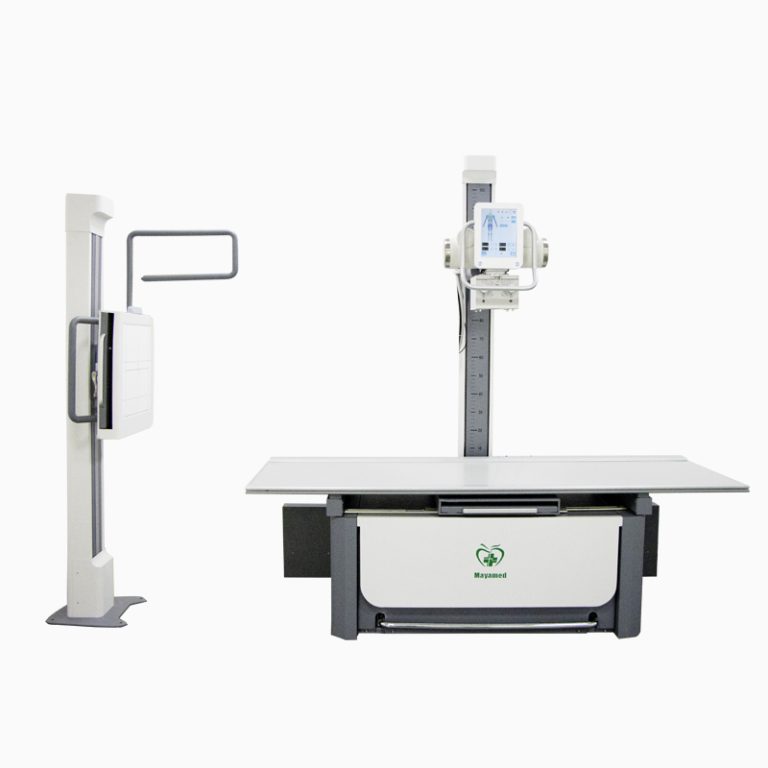

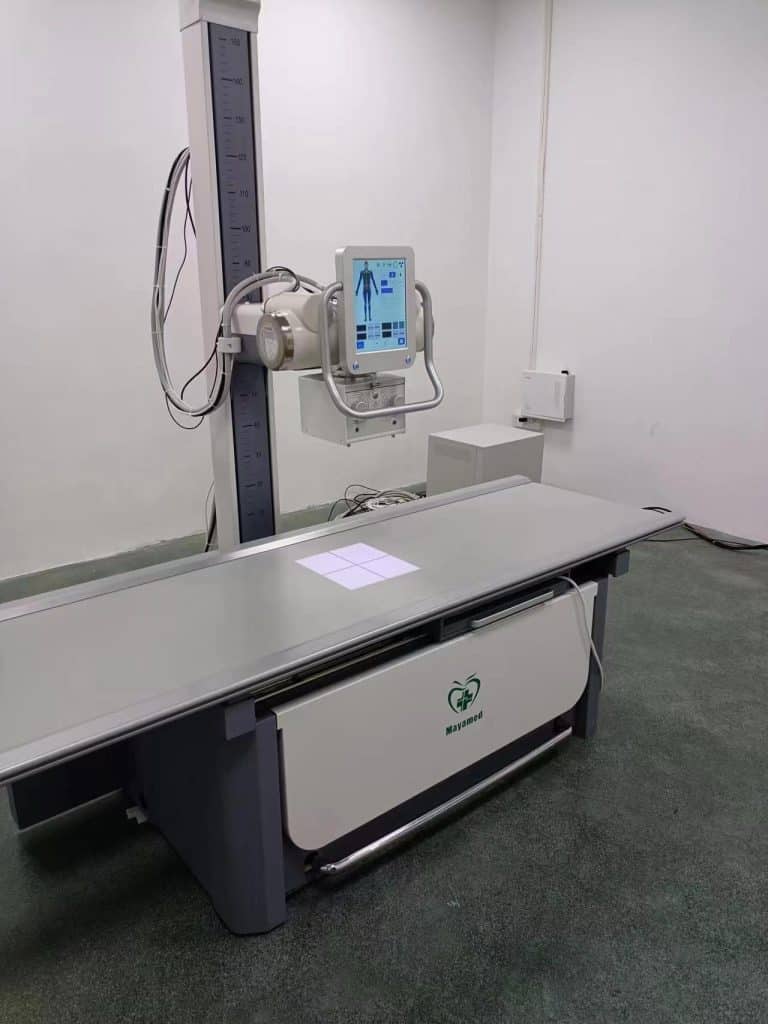

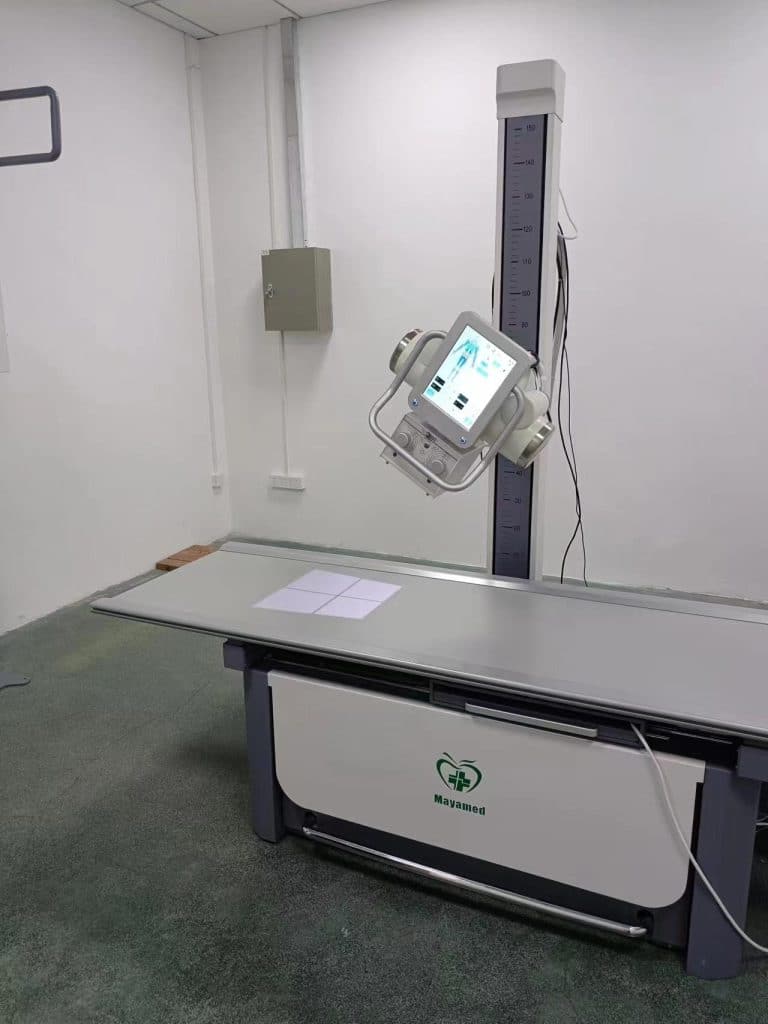

32KW/50KW X-Ray Machine

You have any quetion?

MY-D023G Information

PRODUCT DESCRIPTON

Application: X-ray machines are mainly used for diagnosis in hospitals. Doctors can observe the internal structure and organs of the human body and detect abnormalities through X-ray fluoroscopy or photography. Common X-ray examinations include chest X-rays,bone X-rays,abdominal X-rays,etc. These examinations can help doctors detect diseases such as lung infections,fractures, tumors,stones,etc.,so as to formulate corresponding treatment plans.

Main Specifications

Image post-processing with dedicated modules for acquiring, adjusting,and managing the diagnostic images created by the PZ flat panel detector. √ Optimized workflow. √ Body part and customer-specific image processing. √ Optimized for various applications. √ Support for different languages.

Parameter	MY-D023G
Max.KW	20KW	32KW	50KW	65KW	80KW
Power Supply	50HZ、60HZ,wire diameter >4mm2,internal resistance<0.50;2 0/3 2 /50kW(220V/380V available),65kW/80kW(only380V)
mA	10~250	10~400	10~630	10~800	10~1000
mAS	0.1~200	0.1~320	0.4~1000	0.4~1000	0.4~1000
KV	40~125kV,stepping by 1kV		40~150kV,stepping by 1kV
Exposure Time	0.001~10s adjustable:stepping by 1ms
Focus	Dual focus:1.01.0mm/2.02.0mm		Dual focus:0.60.6mm/1.21.2mm
Rotating Speed &Heat Capacity	2800prm/1300kHU		2800prm/1300kHU		3000prm/1300kHU
Inverter Frequency	50kHZ~220kHZ				80kHZ~300kHZ
Tube Movement	Up&down lift,left &right rotation
Column	Left &right movable
Radiography Table	Four-way floating
Flat Panel Detector	Amorphous silicon cesium iodide
Detector Size	17*17 inch
Pixel Resolution	3072*3072
Pixel Pitch	139um
A/D Conversion	16bits
Spatial Resolution	3.6lp/mm
Size	46046015mm
Interface	Wired (Wireless is optional)
Software Workstation	Professional medical software with multi-languages available Intel i5 CPU, 16G memory, 2G card, 256G SSD, PClE, RS232, 23.8 inch display. Other options are available upon request.
Software Workstation

Standard configuration:

No.	Product Name	Quantity
1	High Voltage Generator	1
2	X-Ray Tube	1
3	Flat panel Detector	1
4	Grid	1
5	Collimator	1
6	Console	1
7	Tube stand with table	1
8	Wall Bucky Stand	1
9	Image Acquisition workstation	1
